3D Printed Houses
- Daniel Henneh
A Novel solution for the US housing crisis - Patent Pending
Click the play button below to watch how this technology works;
How the technology works
1. Container for all the needed equipment for concrete 3D printing
2. Metal reinforced structure for additional structural rigidity
3. Automated deployable arm for sliding stage.
4. Industrial robot for 3D printing
5. Concrete extruding end effector
6. Linear stage
7. Detailed view

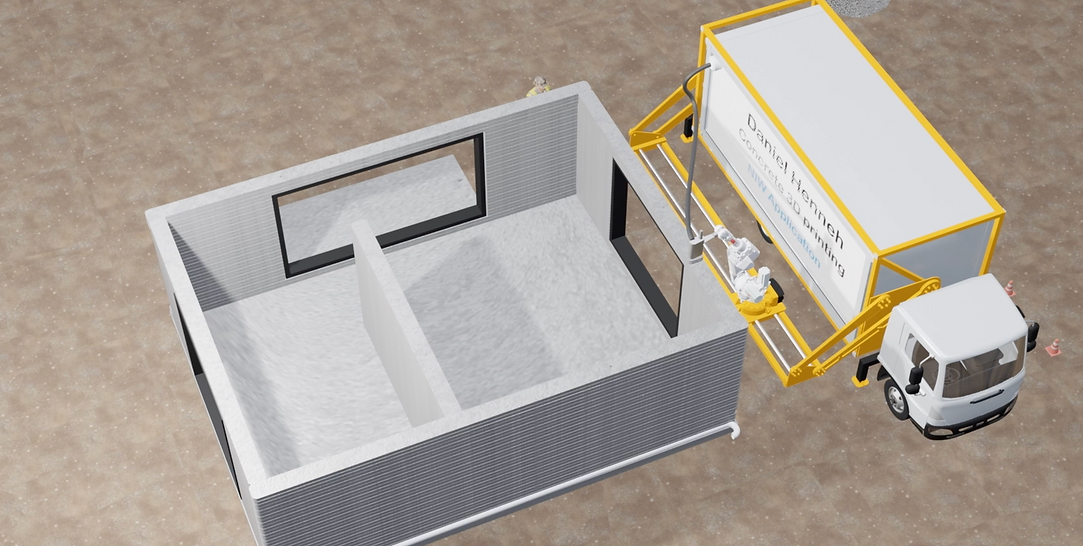

This invention presents a novel way of constructing affordable home through concrete 3D printing.The invention comprises a novel automated construction system that 3D prints houses using a single integrated solution. It consists of three main pieces 1. the container which houses all the needed concrete storage mixing, and extusion equipment as well as power suply that are needed for the concrete 3D printing of a house. The automated deployable arms are connected to a sliding linear stage that allows the six axis robot to move across the length of the system thereby increasing the build volume of the robot.The whole 3D printing system is build around a vehicle which allows it to be effortlessly moved from one construction site to another.
